防爆标志：ExdeIICT5 Gb/ ExtD A21 IP65 T85℃

Ex- mark：ExdeIICT5 Gb/ ExtD A21 IP65 T85℃

额定电压：220V/380V

Rated voltage:220V/380V

元器件：按钮、指示灯、电表、控制开关、小型断路器、塑壳断路器、交流接触器、各种继电器、交流接触器、测量仪表、PLC及用户提供的其它仪器仪表等

Components: button, indicator lamp, meter, a control switch, miniature circuit breakers, molded case circuit breaker, AC contactor, relays, AC contactor, measuring instrument, PLC and the user to provide other instruments such as

进出线螺纹：按用户图纸

imp0rt and export thread: according to user's drawing

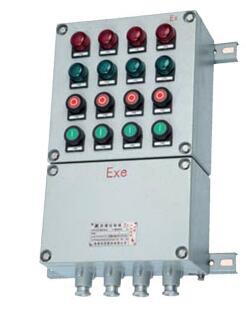

壳体尺寸多种多样、可满足用户多种空间和安装要求，壳体材质有铸铝合金、钢板焊接等，也可根据客户要求选用不锈钢材质

There are various kinds of housing size to meet the customers’ requirements of different room and installation. Housing materials are made of cast aluminum alloy, steel welding and so on. It could also use stainless steel according to customer requirements.

NO.1

2

3

4

5

6

7

XBK401

K

D1

G3”

X10

G3/4”

T

产品型号

Product model

开关

Switch

进线方向数量

Inlet direction and number

进线规格

Inlet thread specification

出线方向数量

Outlet number

出线规格

Outlet thread specification

特殊要求

Special requirement

不配不注

No matching not moted

D:上进线

Upper inlet

X:下进线

Downward outlet

G1”~G3”

D:上出线

Upper outlet

X:下出线

Downward outlet

G3/4”~G2”

按用户图制造

According to the drawing offered by user
