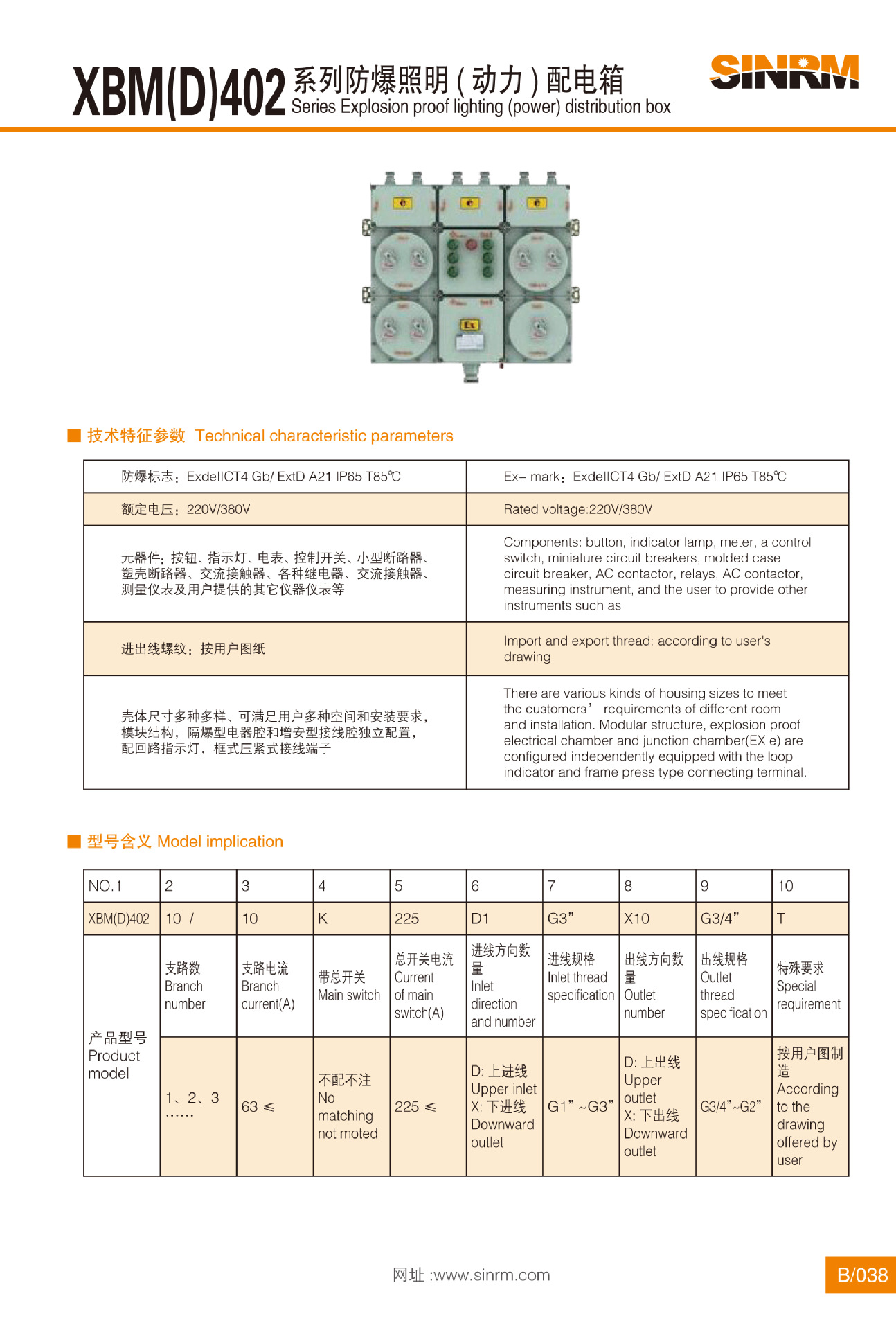

防爆标志：ExdeIICT4 Gb/ ExtD A21 IP65 T85℃

Ex- mark：ExdeIICT4 Gb/ ExtD A21 IP65 T85℃

额定电压：220V/380V

Rated voltage:220V/380V

元器件：按钮、指示灯、电表、控制开关、小型断路器、塑壳断路器、交流接触器、各种继电器、交流接触器、测量仪表及用户提供的其它仪器仪表等

Components: button, indicator lamp, meter, a control switch, miniature circuit breakers, molded case circuit breaker, AC contactor, relays, AC contactor, measuring instrument, and the user to provide other instruments such as

进出线螺纹：按用户图纸

imp0rt and export thread: according to user's drawing

壳体尺寸多种多样、可满足用户多种空间和安装要求，模块结构，隔爆型电器腔和增安型接线腔独立配置，配回路指示灯，框式压紧式接线端子

There are various kinds of housing sizes to meet the customers’ requirements of different room and installation. Modular structure, explosion proof electrical chamber and junction chamber(EX e) are configured independently equipped with the loop indicator and fra-me press type connecting terminal.

NO.1

2

3

4

5

6

7

8

9

10

XBM(D)402

10  /

10

K

225

D1

G3”

X10

G3/4”

T

产品型号

Product model

支路数

Branch number

支路电流

Branch current(A)

带总开关

Main switch

总开关电流

Current of main switch(A)

进线方向数量

Inlet direction and number

进线规格

Inlet thread specification

出线方向数量

Outlet number

出线规格

Outlet thread specification

特殊要求

Special requirement

1、2、3

……

63≤

不配不注

No matching not moted

225≤

D:上进线

Upper inlet

X:下进线

Downward outlet

G1”~G3”

D:上出线

Upper outlet

X:下出线

Downward outlet

G3/4”~G2”

按用户图制造

According to the drawing offered by user
