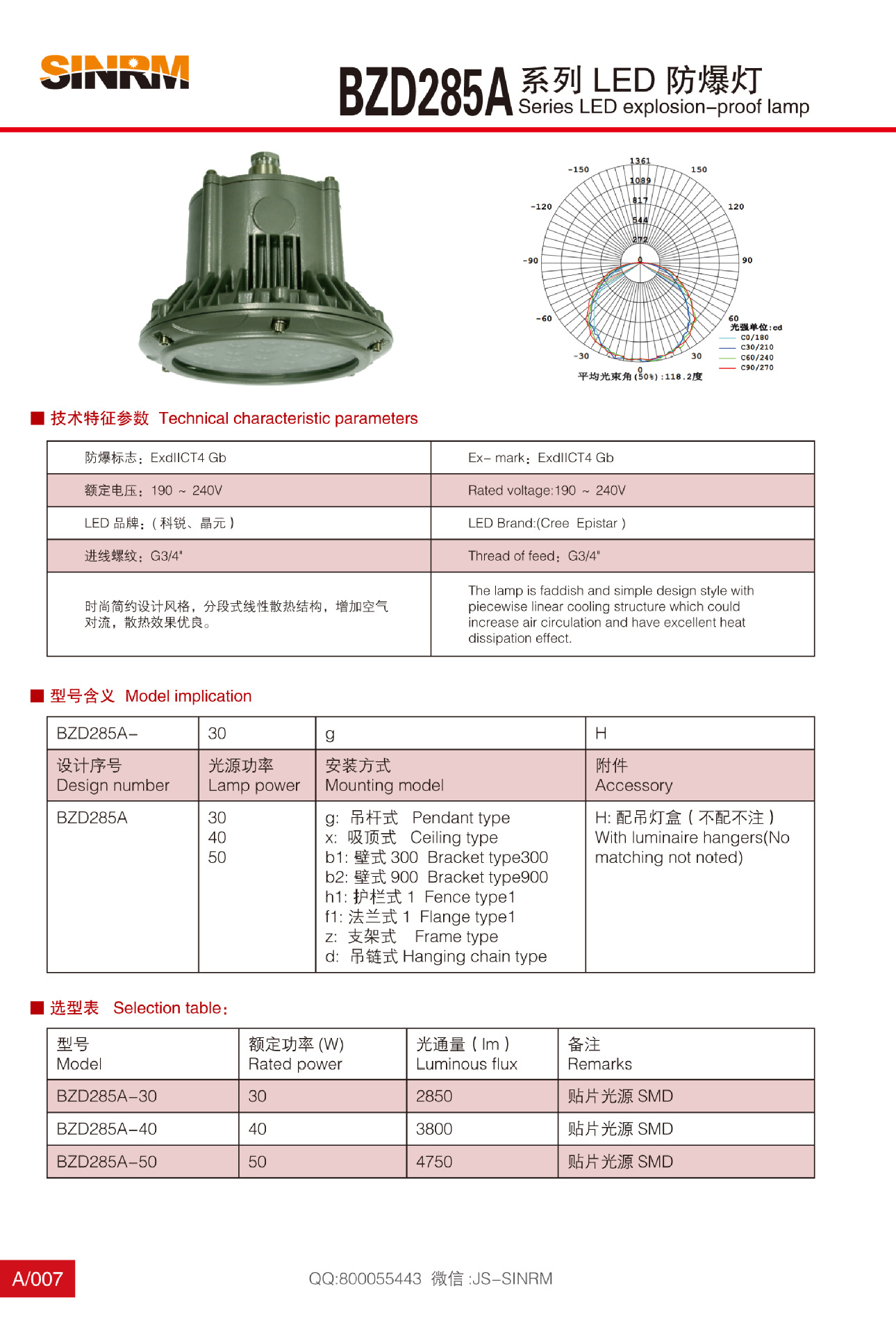

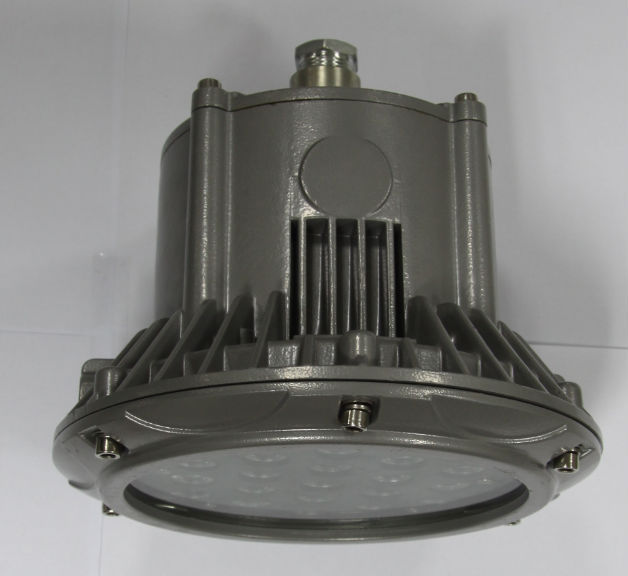

BZD285A Series LED explosion-proof lamp
技术特征参数Technical characteristic parameters
|
防爆标志：ExdIICT4 Gb |
Ex- mark：ExdIICT4 Gb |
|
额定电压：190～240V |
Rated voltage:190～240V |
|
LED品牌：(科锐、晶元） |
LED Brand:(Cree Epistar ) |
|
进线螺纹：G3/4" |
Thread of feed：G3/4" |
|
时尚简约设计风格，分段式线性散热结构，增加空气对流，散热效果优良。 |
The lamp is faddish and simple design style with piecewise linear cooling structure which could increase air circulation and have excellent heat dissipation effect. |
型号含义Model implication
|
No.1 |
2 |
3 |
4 |
|
BZD285A－ |
30 |
g |
H |
|
设计序号 Design number |
光源功率 Lamp power |
安装方式 Mounting model |
附件 Accessory |
|
BZD285A |
30 40 50
|
g: 吊杆式 Pendant type x: 吸顶式 Ceiling type b1:壁式300 Bracket type300 b2:壁式900 Bracket type900 h1:护栏式1 Fence type1 f1:法兰式1 Flange type1 z: 支架式 fra-me type d: 吊链式Hanging chain type |
H:配吊灯盒（不配不注） With luminaire hangers(No matching not noted) |
选型表Selection table：
|
型号 Model |
额定功率(W) Rated power |
光通量（lm） Luminous flux |
备注 Remarks |
|
BZD285A-30 |
30 |
2850 |
贴片光源SMD |
|
BZD285A-40 |
40 |
3800 |
贴片光源SMD |
|
BZD285A-50 |
50 |
4750 |
贴片光源SMD |

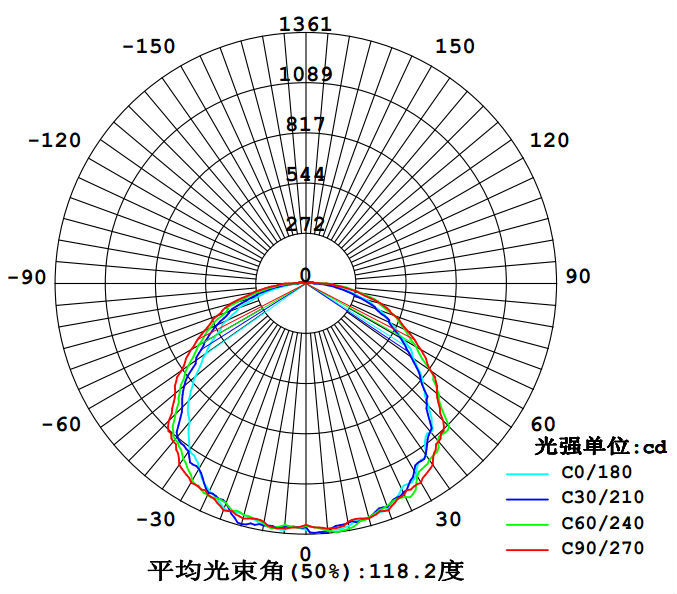

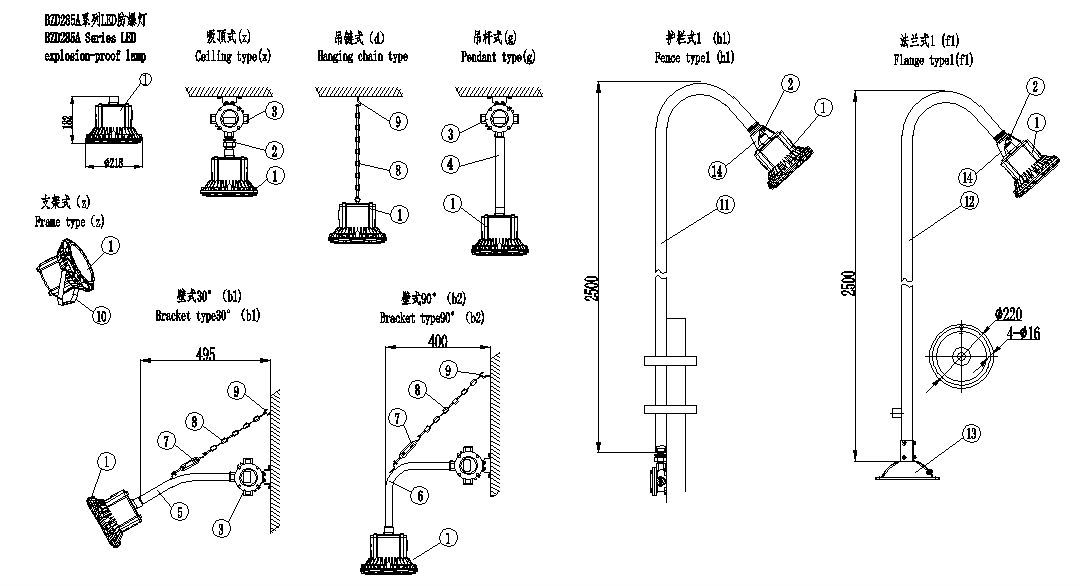

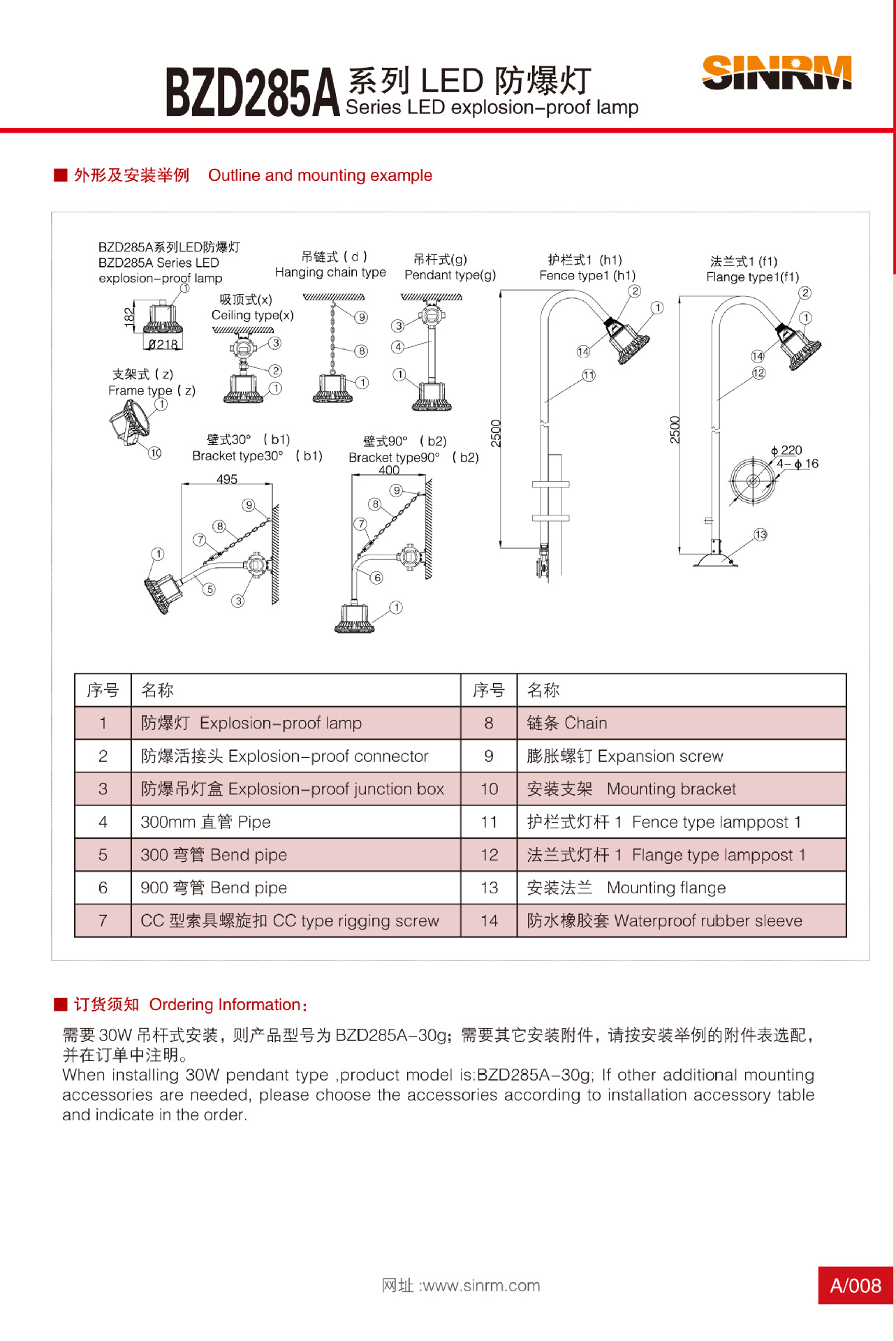

外形及安装举例Outline and mounting example
|
序号 |
名称 |
序号 |
名称 |
|
① |
防爆灯 Explosion-proof lamp |
⑧ |
链条Chain |
|
② |
防爆活接头Explosion-proof connector |
⑨ |
膨胀螺钉Expansion screw |
|
③ |
防爆吊灯盒Explosion-proof junction box |
⑩ |
安装支架 Mounting bracket |
|
④ |
300mm直管Pipe |
?? |
护栏式灯杆1 Fence type lamppost 1 |
|
⑤ |
300弯管Bend pipe |
?? |
法兰式灯杆1 Flange type lamppost 1 |
|
⑥ |
900弯管Bend pipe |
?? |
安装法兰 Mounting flange |
|
⑦ |
CC型索具螺旋扣CC type rigging screw |
?? |
防水橡胶套Waterproof rubber sleeve |
订货须知Ordering Information：
需要30W吊杆式安装，则产品型号为BZD285A-30g；需要其它安装附件，请按安装举例的附件表选配，并在订单中注明。
When installing 30Wpendant type ,product model is:BZD285A-30g;If other additional mounting accessories are needed, please choose the accessories according to installation accessory table and indicate in the order.
