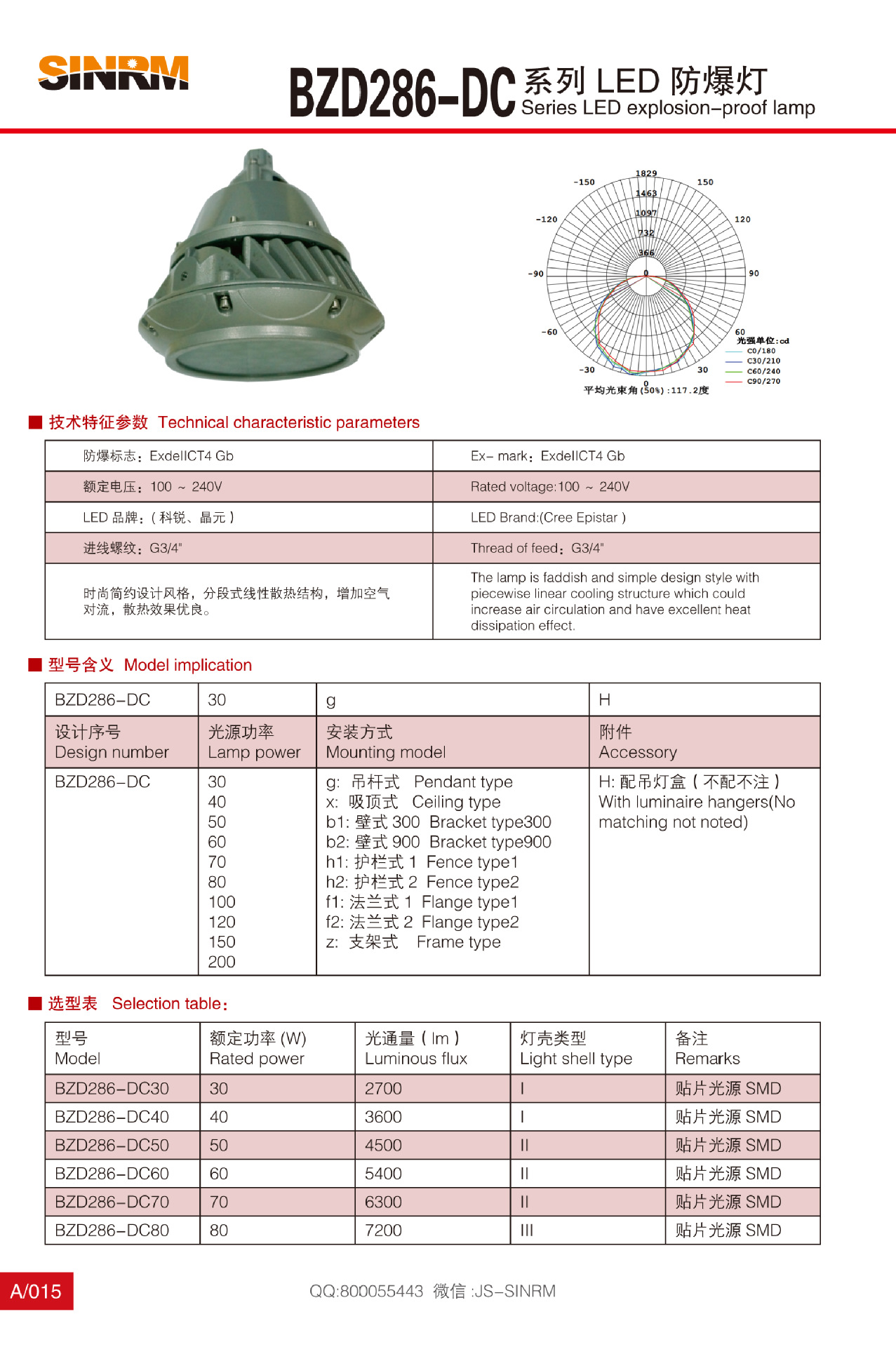

BZD286-DC Series LED explosion-proof lamp
技术特征参数 Technical characteristic parameters
防爆标志:ExdeIICT4 Gb |
Ex- mark:ExdeIICT4 Gb |
额定电压:100~240V |
Rated voltage:100~240V |
LED品牌:(科锐、晶元) |
LED Brand:(Cree Epistar ) |
进线螺纹:G3/4" |
Thread of feed:G3/4" |

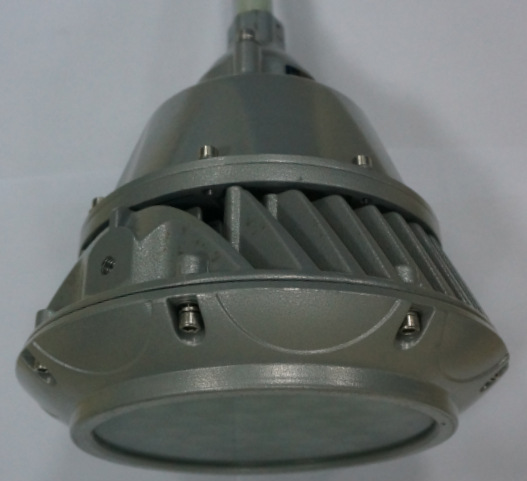

时尚简约设计风格,分段式线性散热结构,增加空气对流,散热效果优良。 |
The lamp is faddish and simple design style with piecewise linear cooling structure which could increase air circulation and have excellent heat dissipation effect. |
型号含义Model implication
No.1 |
2 |
3 |
4 |
BZD286-DC |
30 |
g |
H |
设计序号 Design number |
光源功率 Lamp power |
安装方式 Mounting model |
附件 Accessory |
BZD286-DC |
30 40 50 60 70 80 100 120 150 200 |
g: 吊杆式 Pendant type x: 吸顶式 Ceiling type b1: 壁式300 Bracket type300 b2: 壁式900 Bracket type900 h1: 护栏式1 Fence type1 h2: 护栏式2 Fence type2 f1: 法兰式1 Flange type1 f2: 法兰式2 Flange type2 z: 支架式 fra-me type |
H:配吊灯盒(不配不注) With luminaire hangers(No matching not noted) |
选型表Selection table:
型号 Model |
额定功率(W) Rated power |
光通量(lm) Luminous flux |
灯壳类型 Light shell type |
备注 Remarks |
BZD286-DC30 |
30 |
2700 |
I |
贴片光源SMD |
BZD286-DC40 |
40 |
3600 |
I |
贴片光源SMD |
BZD286-DC50 |
50 |
4500 |
II |
贴片光源SMD |
BZD286-DC60 |
60 |
5400 |
II |
贴片光源SMD |
BZD286-DC70 |
70 |
6300 |
II |
贴片光源SMD |
BZD286-DC80 |
80 |
7200 |
III |
贴片光源SMD |
BZD286-DC100 |
100 |
9000 |
III |
贴片光源SMD |
BZD286-DC120 |
120 |
10800 |
III |
贴片光源SMD |
BZD286-DC150 |
150 |
13500 |
IV |
贴片光源SMD |
BZD286-DC200 |
200 |
18000 |
IV |
贴片光源SMD |

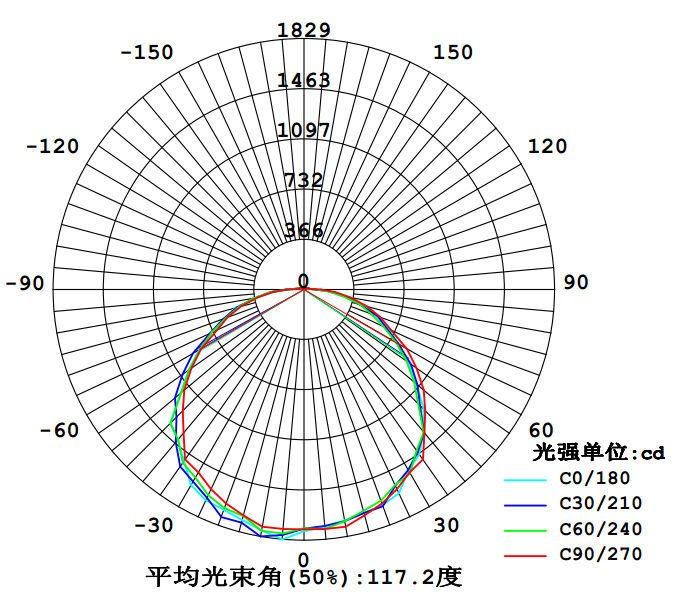

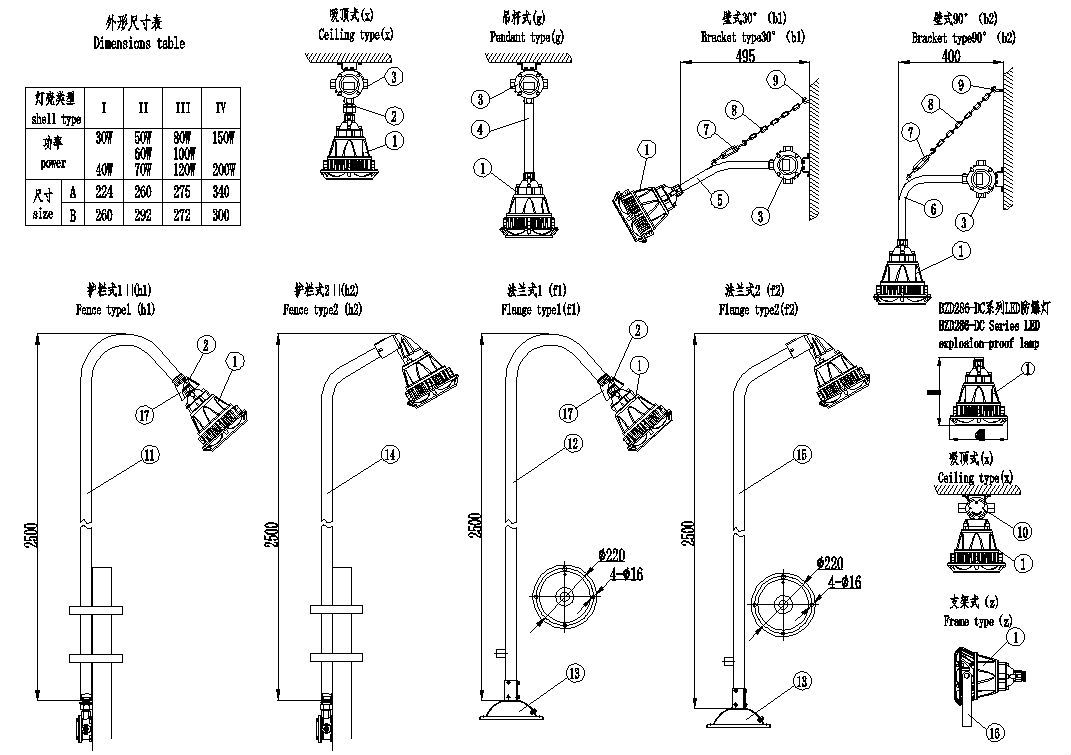

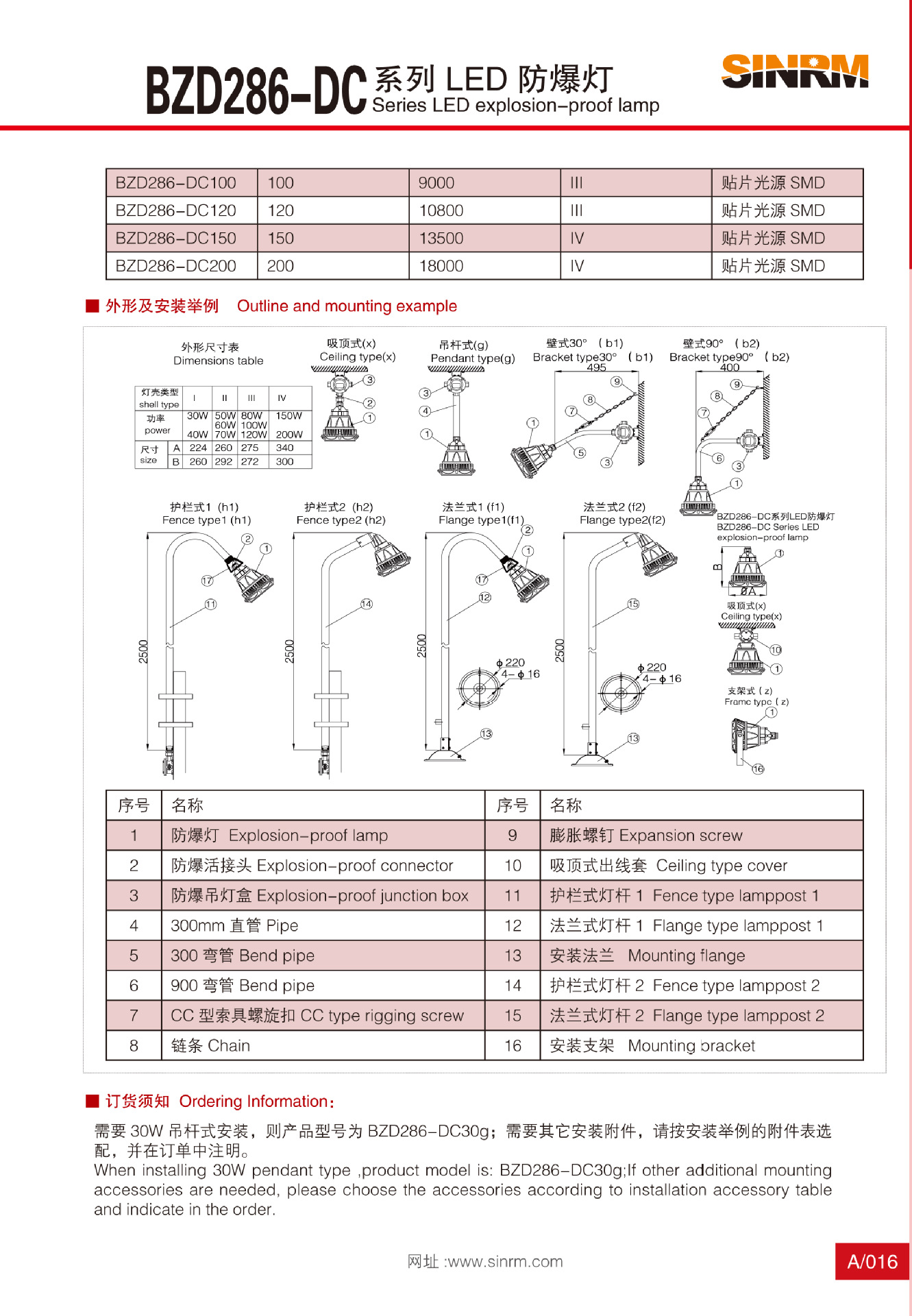

外形及安装举例 Outline and mounting example
序号 |
名称 |
序号 |
名称 |
① |
防爆灯 Explosion-proof lamp |
⑨ |
膨胀螺钉 Expansion screw |
② |
防爆活接头 Explosion-proof connector |
⑩ |
吸顶式出线套 Ceiling type cover |
③ |
防爆吊灯盒 Explosion-proof junction box |
? |
护栏式灯杆1 Fence type lamppost 1 |
④ |
300mm直管 Pipe |
? |
法兰式灯杆1 Flange type lamppost 1 |
⑤ |
300弯管 Bend pipe |
? |
安装法兰 Mounting flange |
⑥ |
900弯管 Bend pipe |
? |
护栏式灯杆2 Fence type lamppost 2 |
⑦ |
CC型索具螺旋扣 CC type rigging screw |
? |
法兰式灯杆2 Flange type lamppost 2 |
⑧ |
链条 Chain |
? |
安装支架 Mounting bracket |
订货须知Ordering Information:
需要30W吊杆式安装,则产品型号为BZD286-DC30g;需要其它安装附件,请按安装举例的附件表选配,并在订单中注明。
When installing 30W pendant type ,product model is: BZD286-DC30g;If other additional mounting accessories are needed, please choose the accessories according to installation accessory table and indicate in the order.
