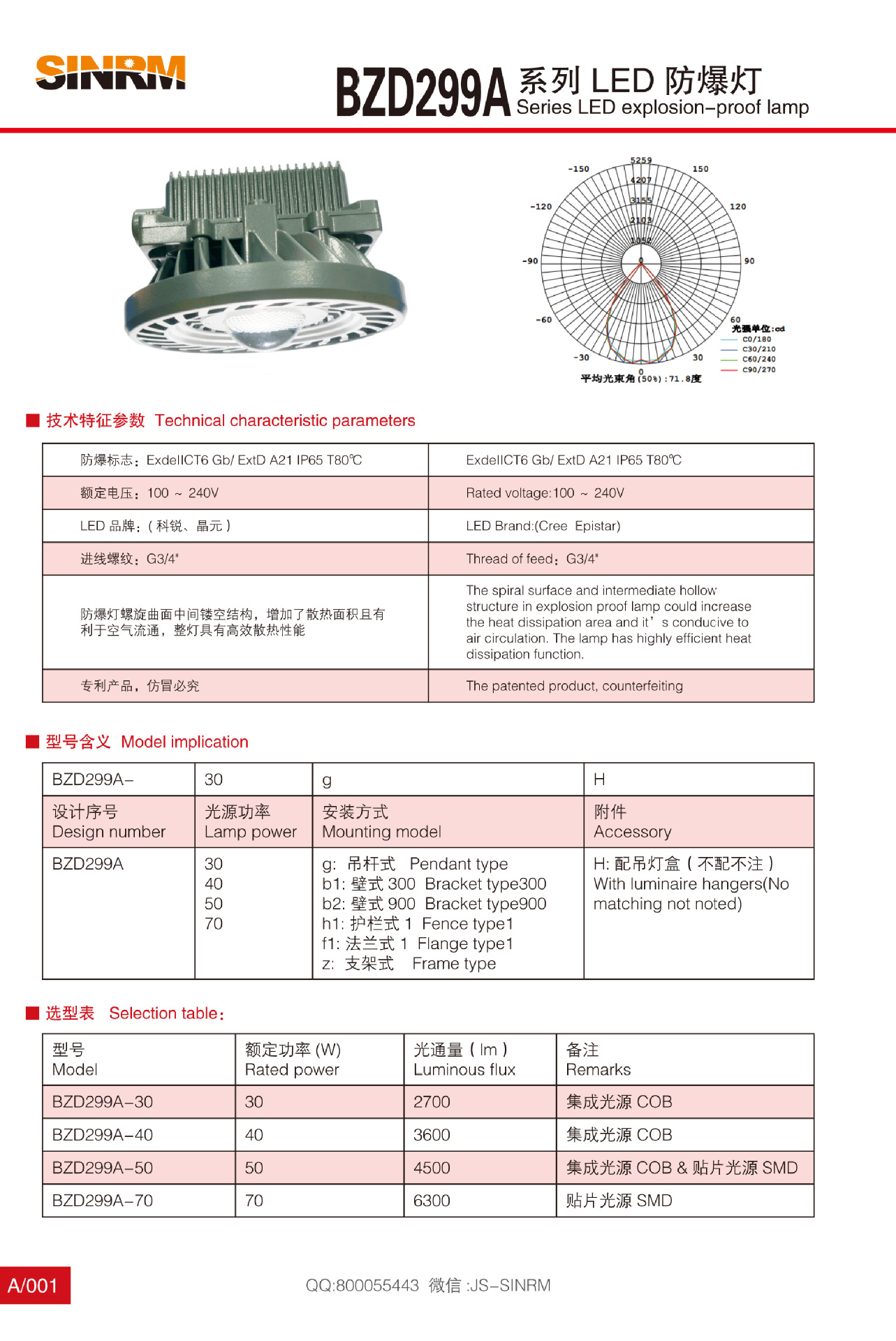

防爆标志：ExdeIICT6 Gb/ ExtD A21 IP65 T80℃

Ex- mark：ExdeIICT6 Gb/ ExtD A21 IP65 T80℃

额定电压：100～240V

Rated voltage:100～240V

LED品牌：(科锐、晶元）

LED Brand:(Cree  Epistar)

进线螺纹：G3/4"

Thread of feed：G3/4"

防爆灯螺旋曲面中间镂空结构，增加了散热面积且有利于空气流通，整灯具有高效散热性能

The spiral surface and intermediate hollow structure in explosion proof lamp could increase the heat dissipation area and it’s conducive to air circulation. The lamp has highly efficient heat dissipation function.

专利产品，仿冒必究

The patented product, counterfeiting

No.1

2

3

4

BZD299A－

30

g

H

设计序号

Design number

光源功率

Lamp power

安装方式

Mounting model

附件

Accessory

BZD299A

30

40

50

70

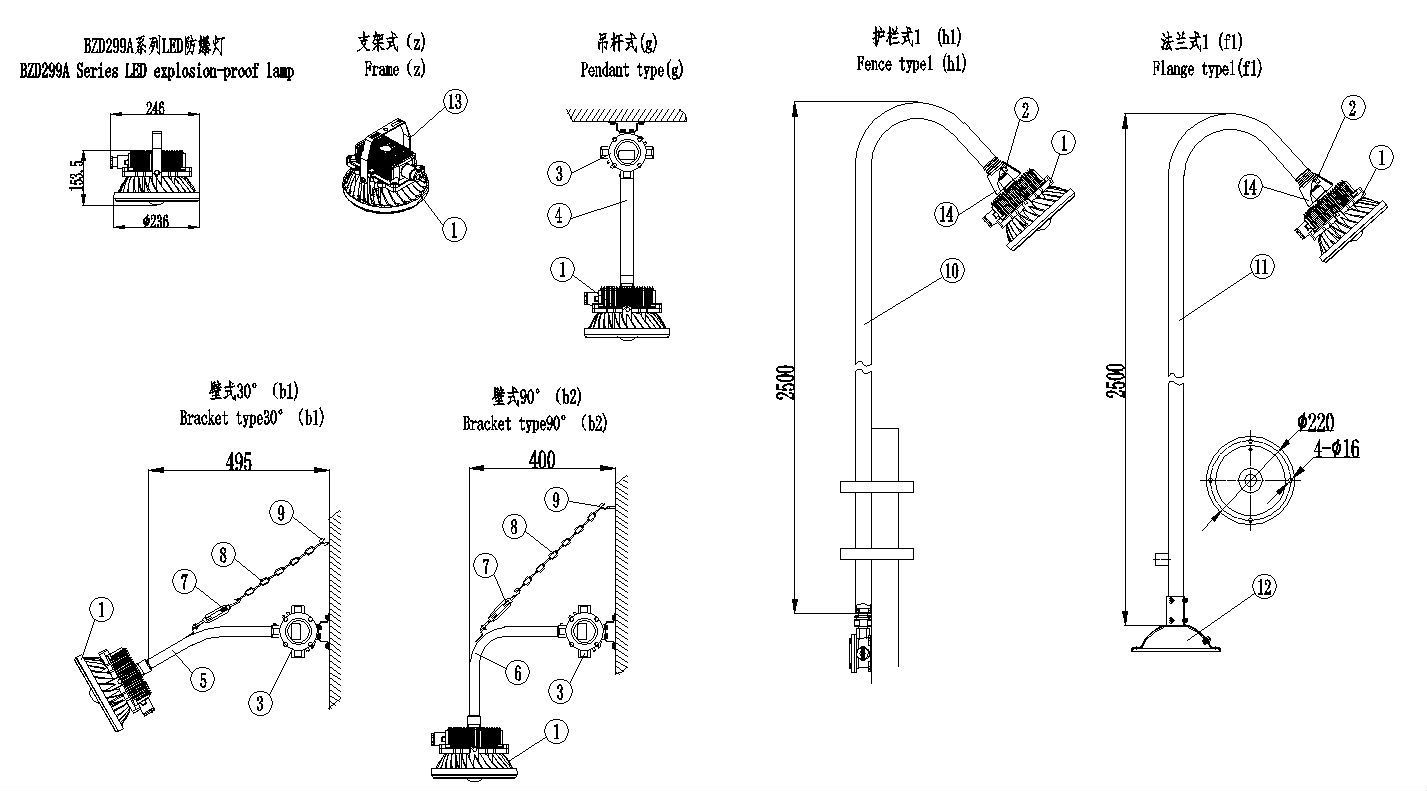

g:  吊杆式   Pendant type

b1: 壁式300  Bracket type300

b2: 壁式900  Bracket type900

h1: 护栏式1  Fence type1

f1: 法兰式1  Flange type1

z:  支架式    fra-me type

H:配吊灯盒（不配不注）

With luminaire hangers(No matching not noted)

型号

Model

额定功率(W)

Rated power

光通量（lm）

Luminous flux

备注

Remarks

BZD299A-30

30

2700

集成光源 COB

BZD299A-40

40

3600

集成光源 COB

BZD299A-50

50

4500

集成光源COB &贴片光源SMD

BZD299A-70

70

6300

贴片光源 SMD

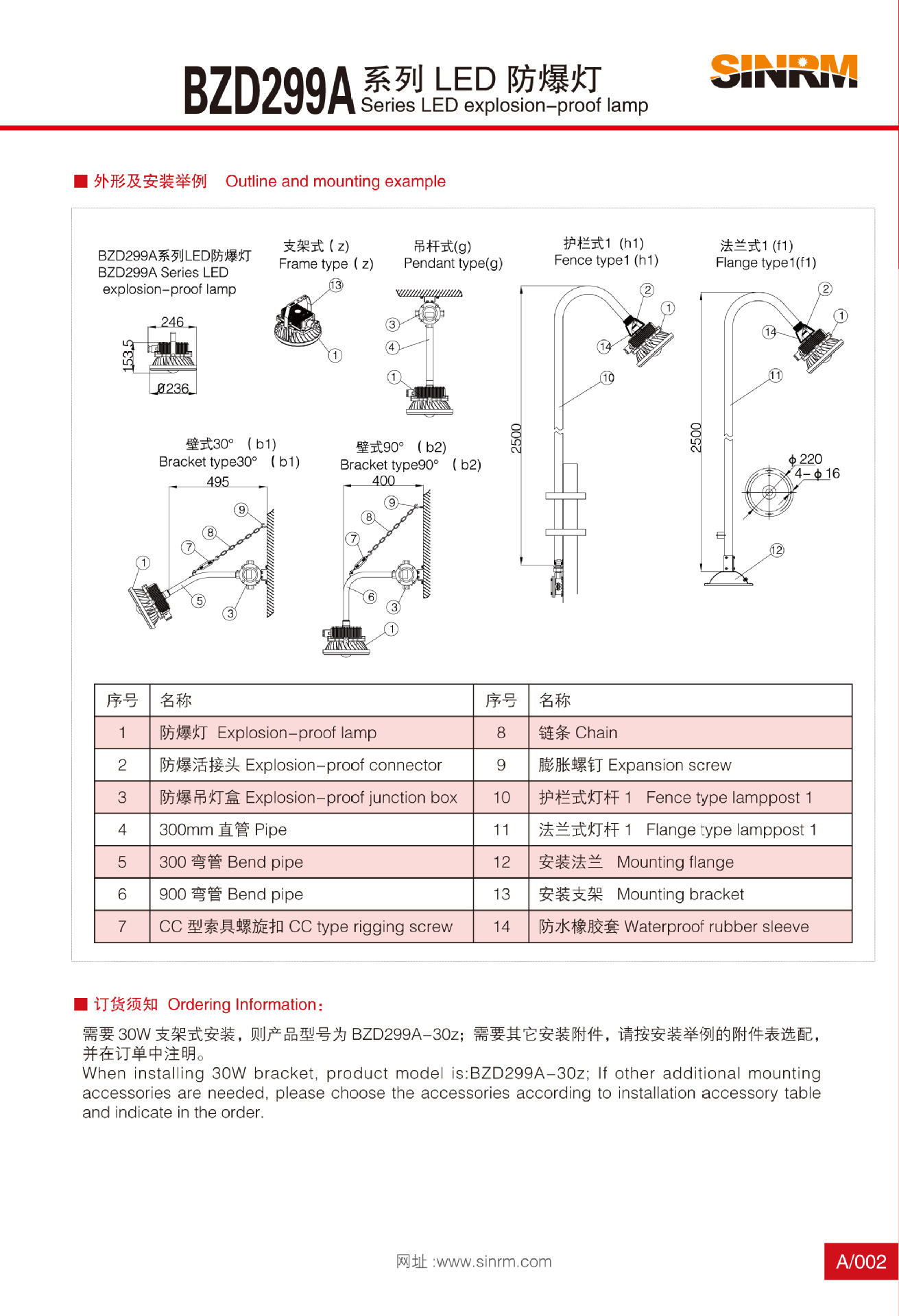

序号

名称

序号

名称

①

防爆灯  Explosion-proof lamp

⑧

链条 Chain

②

防爆活接头 Explosion-proof connector

⑨

膨胀螺钉 Expansion screw

③

防爆吊灯盒 Explosion-proof junction box

⑩

护栏式灯杆1  Fence type lamppost 1

④

300mm直管 Pipe

?

法兰式灯杆1  Flange type lamppost 1

⑤

300弯管 Bend pipe

?

安装法兰   Mounting flange

⑥

900弯管 Bend pipe

?

安装支架   Mounting bracket

⑦

CC型索具螺旋扣 CC type rigging screw

?

防水橡胶套 Waterproof rubber sleeve
