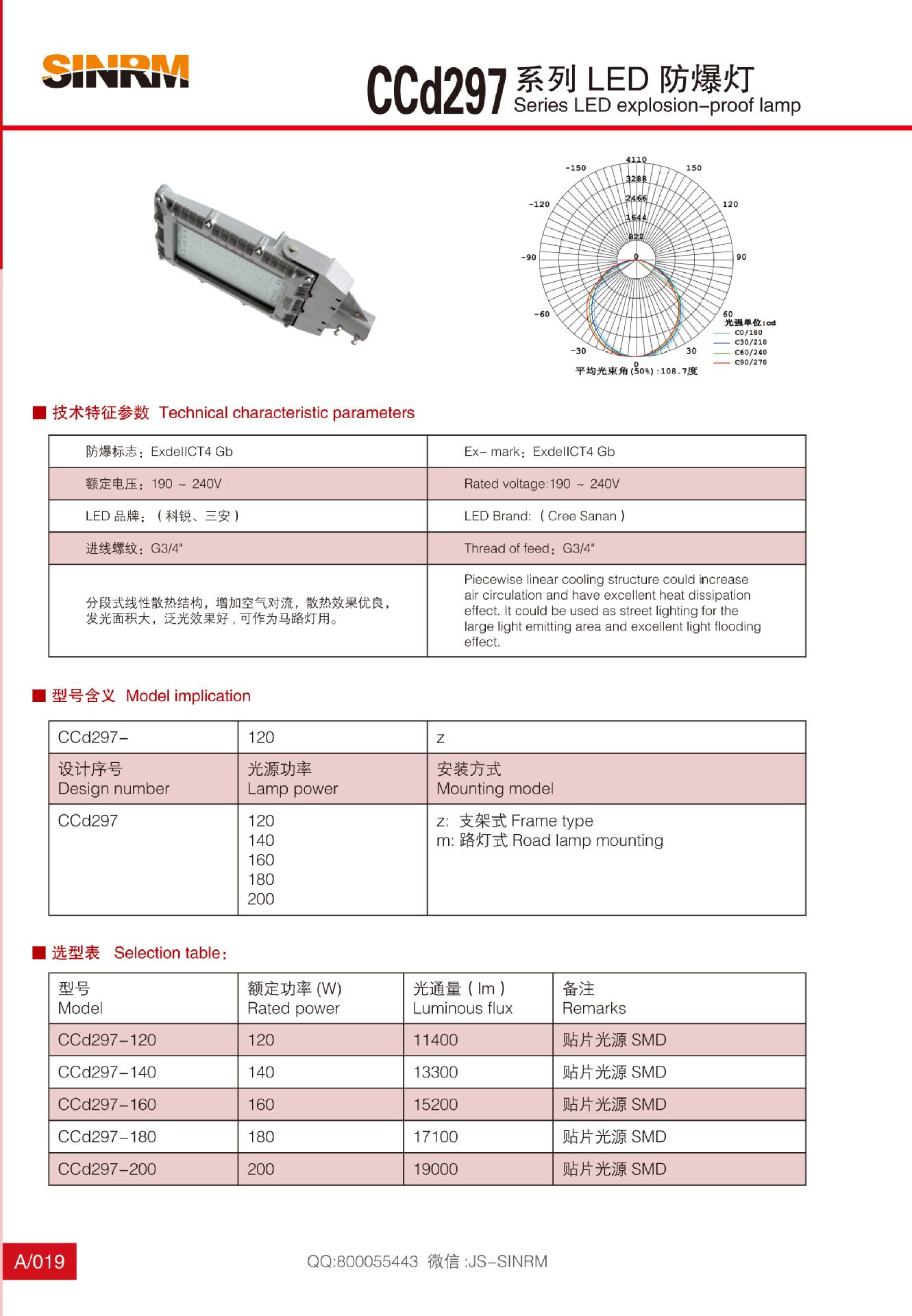

CCd297 Series LED explosion-proof lamp
技术特征参数 Technical characteristic parameters
|
防爆标志：ExdeIICT4 Gb |
Ex- mark：ExdeIICT4 Gb |
|
额定电压：190～240V |
Rated voltage:190～240V |
|
LED品牌：（科锐、三安） |
LED Brand: （Cree Sanan） |
|
进线螺纹：G3/4" |
Thread of feed：G3/4" |
|
分段式线性散热结构，增加空气对流，散热效果优良，发光面积大，泛光效果好,可作为马路灯用。 |
Piecewise linear cooling structure could increase air circulation and have excellent heat dissipation effect. It could be used as street lighting for the large light emitting area and excellent light flooding effect. |
型号含义Model implication
|
No.1 |
2 |
3 |
|
CCd297－ |
120 |
z |
|
设计序号 Design number |
光源功率 Lamp power |
安装方式 Mounting model |
|
CCd297 |
120 140 160 180 200 |
z: 支架式fra-me type m: 路灯式Road lamp mounting |
选型表Selection table：
|
型号 Model |
额定功率(W) Rated power |
光通量（lm） Luminous flux |
备注 Remarks |
|
CCd297-120 |
120 |
11400 |
贴片光源SMD |
|
CCd297-140 |
140 |
13300 |
贴片光源SMD |
|
CCd297-160 |
160 |
15200 |
贴片光源SMD |
|
CCd297-180 |
180 |
17100 |
贴片光源SMD |
|
CCd297-200 |
200 |
19000 |
贴片光源SMD |

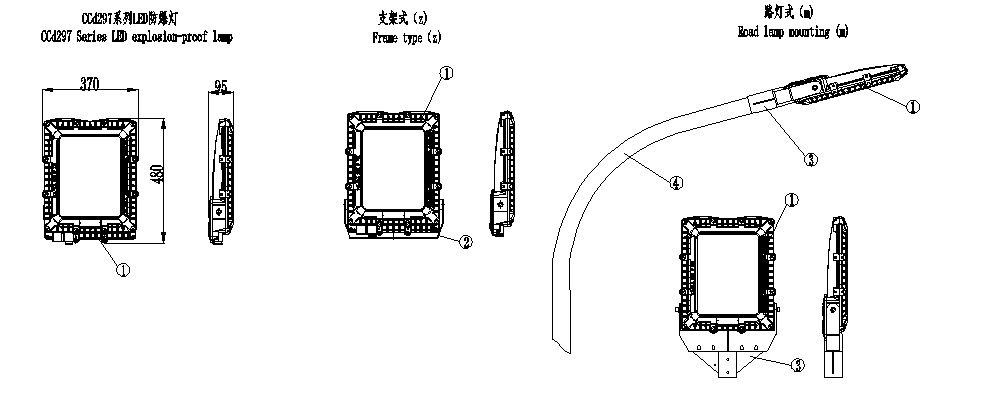

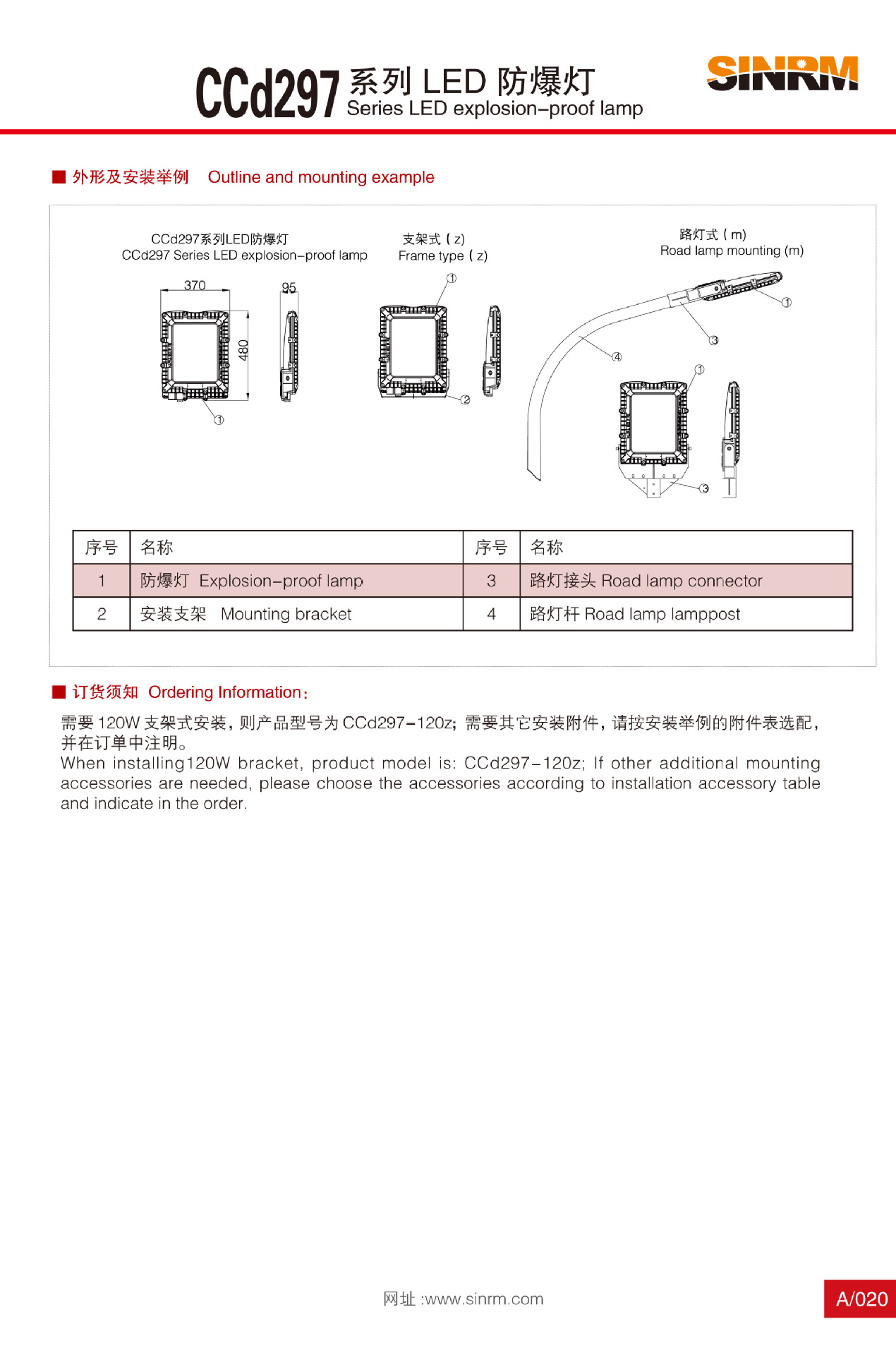

外形及安装举例 Outline and mounting example
|
序号 |
名称 |
序号 |
名称 |
|
① |
防爆灯 Explosion-proof lamp |
③ |
路灯接头 Road lamp connector |
|
② |
安装支架 Mounting bracket |
④ |
路灯杆 Road lamp lamppost |
订货须知Ordering Information：
需要120W支架式安装，则产品型号为CCd297-120z；需要其它安装附件，请按安装举例的附件表选配，并在订单中注明。
When installing120W bracket, product model is: CCd297-120z; If other additional mounting accessories are needed, please choose the accessories according to installation accessory table and indicate in the order.
