开封EL3413倍福专卖|EL3314总线耦合器
河北燕科厂家供应·倍福模块·奥地利蓝KN开关·CX控制器
2019年倍福模块现货供应全国各地。。。。
供应地区：祖国大陆各地+台湾+香港+澳门等地。
河北燕科·提供产品保证原装全新欧美现货
河北燕科·全国物流发货 质量保障 年
杨女士 13520033304（同微信）
QQ 598936676

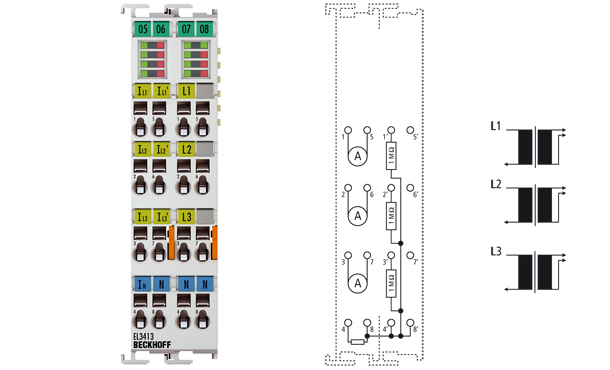

EL3413 | 3-phase power measurement terminal up to 690 V AC
The EL3413 EtherCAT power measurement terminal is a further development of the EL3403. With up to 690 V AC the voltage inputs are optimised for direct monitoring of high-performance generators, as used in the wind power industry, for example. No upstream voltage transformer is required. The current inputs are galvanically isolated so that the terminal can be used in all common grounded current transformer configurations such as 2- or 3-transformer configurations with star or delta connection. The EL3413 can deal with simple network analysis up to the 21st harmonic analysis. Like all measured terminal data, the harmonic content can be read via the process data.
| Technical data | EL3413 |
|---|---|
| Number of inputs | 3 x current, 3 x voltage |
| Technology | 3-phase power measurement for alternating voltages |
| Distributed clocks | – |
| Conversion time | mains-synchronous |
| Measured values | current, voltage, effective power, reactive power, apparent power, energy, cos φ, frequency, harmonic |
| Measuring voltage | max. 690 V AC 3~ (ULX-N: max. 400 V AC) |
| Measuring current | max. 5 A, potential-free, via measuring transformers x A/5 A |
| Resolution | 1 μA, 0.1 mV, 10 mW |
| Measuring error | 0.5 % relative to full scale value for measuring values (U/I), 1 % calculated value |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 120 mA |
| Special features | galvanically isolated current inputs, harmonic analysis, single-phase operation also possible |
| Weight | approx. 100 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27/29 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
河北燕科专注欧美工控备件进口
1. 德国法兰克福设有专门采购分部，欧洲公司身份获得更低产品折扣。
2. 正规渠道，所有产品100%原厂保障，出厂、清关等手续 应俱全。
3. 选择与服务优质的国际物流合作， 周多次航班，货期更准、更快。
4. 欧美3000多个合作品牌，只需客户提供正确品牌、型号/铭牌，剩下的交给我们。
5. 全程ERP办公，询复价更及时，选择精捷高效+售后保障，请认准河北燕科！
